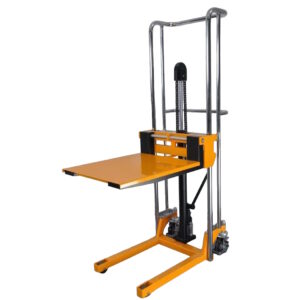

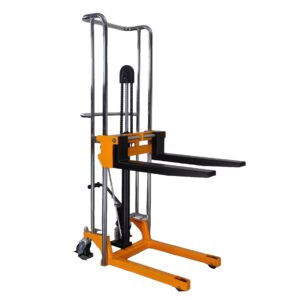

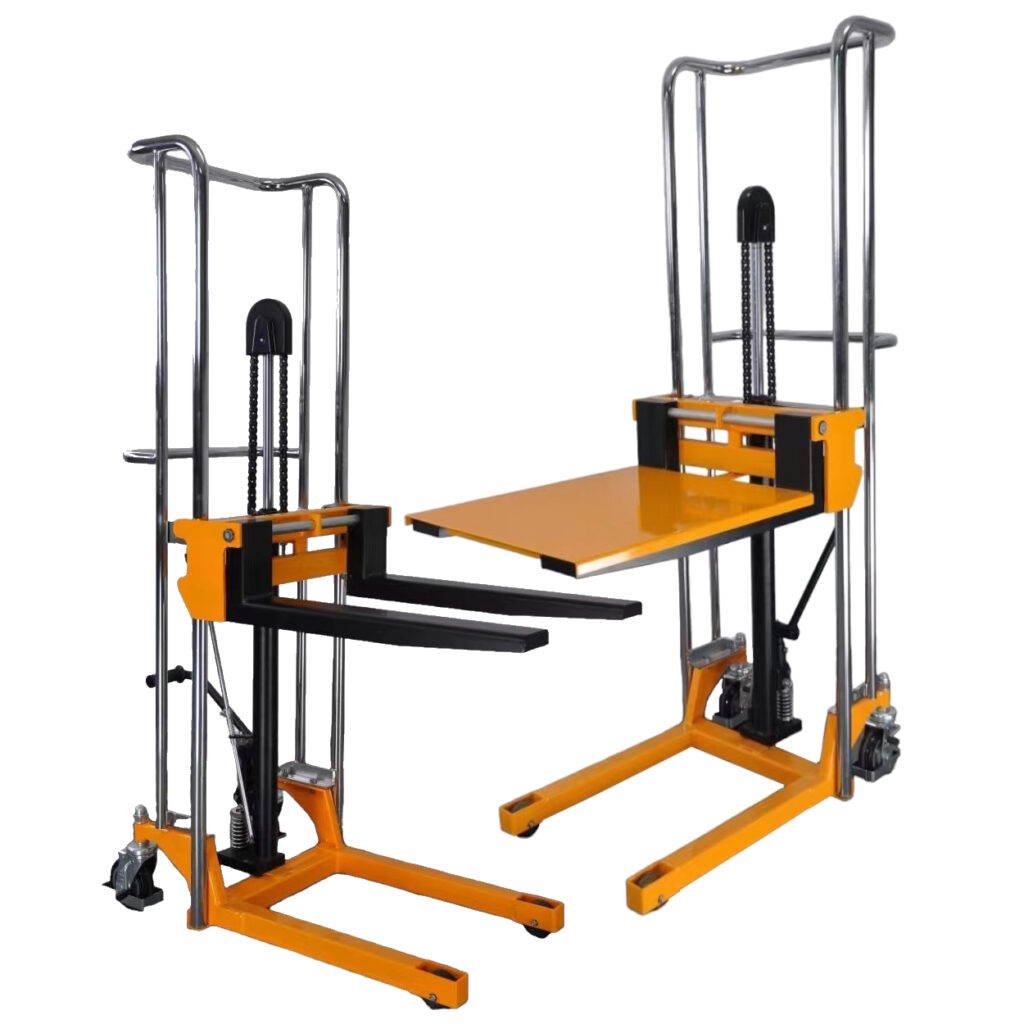

The PJ series of platform stackers have adjustable forks and a removable top plate.

Three different variants are produced to suit various applications.

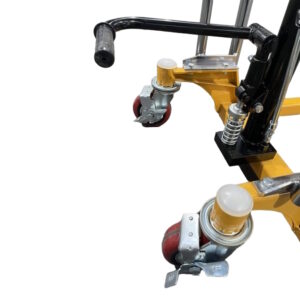

All models feature a Hard Chromium plated frame, 2 x 75mm body rollers and 2 x 125mm braked steering rollers.

Once the model is raised to the required height using it’s collapsible foot pump, you simply turn a dial and it will stop at that level.

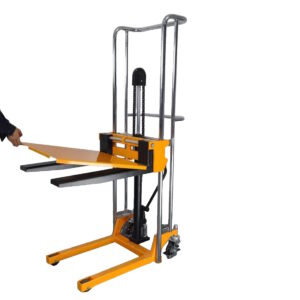

All models are very versatile, with a 400kg load capacity and they are supplied with a removable top plate and adjustable forks, which allow for a multitude of a uses from each unit.

Conforms to EN1757-1.

Model PJ4085A – 0.85m Lift Height / PJ4120A – 1.2m Lift Height / PJ4150A – 1.5m Lift Height

For all models, the removable top plate is 650x576mm and the minimum lift height is 85mm.

Minimum width across the adjustable 100mm x 650mm long forks is 207mm, up to a maximum of 650mm.

Further dimensions and weights can be found by viewing the technical spec sheet on this page.
